Kawasaki FX691V-DS14S 22 HP 1" X 80 PTO
Vendor: Kawasaki

Kawasaki FX691V-DS14S 22 HP 1" X 80 PTO

$2,220.76

Description

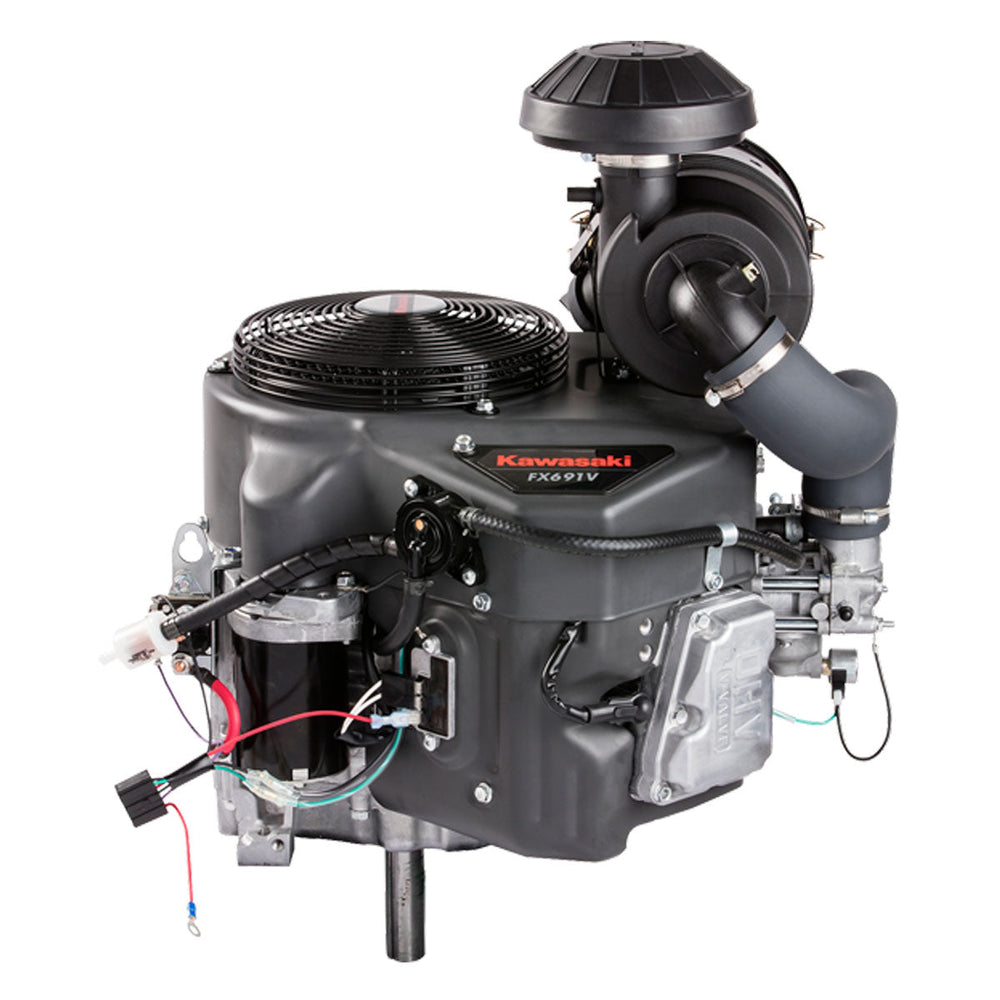

Introducing the FX691V-DS14-S Genuine Kawasaki Vertical Engine - Delivering 22 HP:

The FX691V engine is engineered to tackle the toughest tasks with Kawasaki's precision-built power.

This forced air-cooled V-twin engine is equipped with an internally vented carburetor featuring a fuel shut-off solenoid, along with a robust heavy-duty canister air filter. All FX engines are certified as Critical Power SAE-Certified, compact, 90-degree V-twin engines. Each engine boasts hemispherical combustion chambers and advanced overhead V-valve technology, ensuring low emissions, high power output, and smooth operation.

Specifications:

  • PTO Size: 1" x 3-5/32"
  • Power Output: 22 HP
  • Equipped with a Shift-Type Starter
  • Includes a 15 AMP Charging Coil
  • Without Muffler
  • Features a Heavy-Duty Canister Air Filter
  • Boasts an Overhead V-Valve Design
  • 90�� V-Twin Configuration
  • Utilizes a Pressurized Lubrication System
  • Deploys Electronic Spark Ignition
  • Incorporates Automatic Compression Release
  • Features a Rotating Metal Grass Chopper Screen
  • Utilizes a Multi-Stage Canister Air Filter
  • Incorporates Cast-Iron Cylinder Liners
  • Comes with a Metal Engine Cover featuring Integrated Cleanout Ports
  • Equipped with a Heavy-Duty Shift-Type Starter
  • Displacement: 726 cc (44.3 cu. in.)
  • Number of Cylinders: 2
  • Bore x Stroke: 3.1 x 3.0 in. (78 x 76mm)
  • Compression Ratio: 8.2:1
  • Oil Capacity with Filter: 2.2 U.S. qt (2.1 liters)
  • Maximum Power Output: 22.0 hp (16.4 kW) at 3,600 RPM
  • Maximum Torque: 39.4 ft-lbs (53.4 N��m) at 2,200 RPM
  • Dry Weight: 101.4 lbs (46.0 kgs)

The FX691V-DS14-S is designed to provide robust and dependable performance for a wide range of applications, making it an excellent choice for various tasks.
